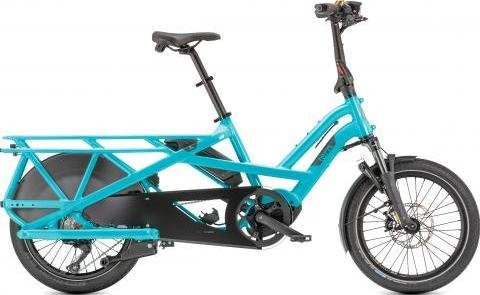

TernGSD Gen 2 S10 400Wh

$7,995.00

Incl. Taxes plus shipping

Colors
Sizes

We're sorry.

The checkout for this seller is not enabled. Please reach out to the seller directly using the form below, or visit them in store at the listed address.

About the Seller

Verified SellerThis seller is verified by BikeExchange. This badge signifies that the seller has met our highest standards for authenticity and quality.
Location: 5889 Tweed Valley Way, Mooball, New South Wales, 2483, Australia
Estimated waiting time until collection: 2 – 5 days

Delivery Options

Shipping -- unavailable

ShippingConvenient online payment and delivery to your home.

Click & Collect -- available

Click & CollectPay securely online and collect directly from our local partner store.

Reserve in Store -- available

Reserve in StoreReserve online, buy directly in store: The reservation fee will be deducted from the purchase price.

Questions and Answers

400
Bosch
20"
201 kg (440 lb) Maximum Gross Vehicle Weight Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support Bosch dual-battery system (400/900 Wh) for a range of up to 195 km (121 mi) Shimano® Deore 1 × 10-speed hub for smooth, efficient shifting Adjustable cockpit comfortably fits riders 150 – 195 cm (4’11” – 6’5”) Super tough Atlas Lockstand™ auto-locks when engaged—just press a button ...read more

General

  • FrameTern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
  • Weight*33.58 kg (74 lb)

    • Brakes

  • Brake LeverMagura MT5 e-stop, hydraulic, with brake sensor

    • Wheels & Tires

  • WheelsTern Atlas, ultra wide 36 mm, dual reinforced joint
  • Rear HubTern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
  • Front HubTern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
  • TiresF: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
  • SpokesStainless steel, 13G

    • Cockpit

  • StemTern Andros, adjustable, forged construction, patented technology
  • GripsErgon
  • DisplayBosch Purion, 4 mode selectable, walk assist
  • HeadsetTern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
  • HandlebarTern Sweep, 6061-AL, Tern Andros adapted

    • Motor & Battery

  • MotorBosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
  • BatteryBosch Dual Battery system, 400 Wh/900 Wh
  • Charger220V, 4A (EU); 100-240V, 4A (US)
  • Motor Positionmid-engine
  • Motor ManufacturerBosch
  • Battery ManufacturerBosch
  • Maximum Motor Supportup to 25 kph
  • Torque85 Nm

    • Accessories

  • RackFrame integrated, heavy duty design; Max load weight: 100 kg (220 lb)
  • StandAtlas Lockstand, w/ remote unlock, patented technology
  • FenderIntegrated Wheel Guard, AL6061, w/ Side Skirt
  • Rear LightRearStop Brake Light, Always on brake light
  • Front LightTern Valo Direct, 190 lumens
  • BellPitch Plus, brass

    • Groupset

  • Chain / Belt10 spd, DHT for eBike, GST corrosion resistant coating
  • PedalsUrban with non-slip surface, sealed bearings
  • CassetteShimano 11-36T, 10 spd
  • CranksetTern GSD custom, forged 6061-AL DH crankarm
  • ShiftersShimano Deore, 1 x 10 spd
  • Chain CaseTern Custom, full chain cover
  • Bottom BracketMotor integrated
  • Number Of Gears1 x 10
  • Rear DerailleurShimano Deore Shadow+

    • Saddle

  • SaddleTern GSD by Velo, with rear handle
  • Seat PostTern Telescope, 34.9/30.9 mm, 2014-AL
  • Seat Post ClampTern Collar, 6061-AL, 2pc

    • Suspension

  • ForkSuntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
  • Fork typesuspension fork
  • Front suspension70mm
  • Fork ManufacturerSR Suntour
    • Disclaimer

    Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
