MeridaeONE-SIXTY 500

$6,299.00
$6,999.00

RRP

Incl. Taxes plus shipping

Colors
Sizes

We're sorry.

The checkout for this seller is not enabled. Please reach out to the seller directly using the form below, or visit them in store at the listed address.

About the Seller

Location: 317 Concord Road, Concord West, New South Wales, 2138, Australia
Estimated waiting time until collection: 2 – 5 days

Delivery Options

Shipping -- unavailable

ShippingConvenient online payment and delivery to your home.

Click & Collect -- available

Click & CollectPay securely online and collect directly from our local partner store.

Reserve in Store -- available

Reserve in StoreReserve online, buy directly in store: The reservation fee will be deducted from the purchase price.

Questions and Answers

Aluminium
630
Shimano
Shimano Deore
29"
Diamond
Disc Brakes

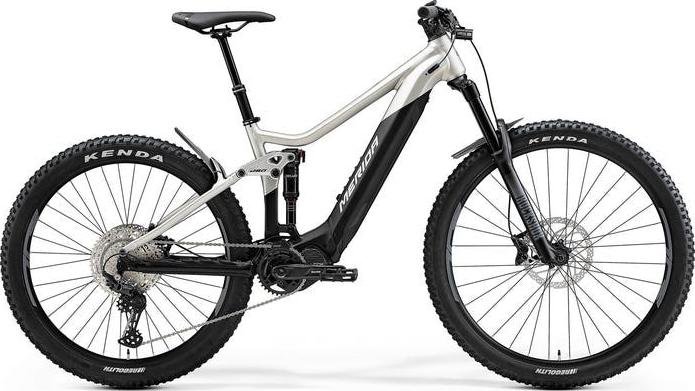

Introducing the Merida eONE-SIXTY 500 2022, an electric mountain bike designed to elevate your riding experience whether you're a beginner or an ambitious rider. Built on the eONE-FS LITE III frame made of lightweight MAT aluminium, this bike brings together strength and agility. Its sleek design incorporates 150 STR travel and a unique 29/27.5" wheelset that offers great stability and nimble handling ...read more

Brakes

  • Brake LeverShimano Deore
  • BrakeShimano M4100; 4 piston
  • Brake TypeHydraulic Disc Brake

    • Cockpit

  • StemMERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
  • HandlebarMERIDA Expert eTR; 780 Wide; 20 Rise
  • GripsMERIDA Expert EC
  • DisplayShimano SC-E5003

    • General

  • Weight*25
  • FrameeONE-FS LITE III; MAT aluminium; 150 STR; 29/27.5" WHS; 148x12 AST; intube;
  • Frame materialAlloy

    • Groupset

  • Chain / BeltHG601-11
  • CranksetShimano FCEM600; 165 mm for all sizes
  • ShiftersShimano Deore M5100 11
  • Rear DerailleurShimano Deore RDM5100 11
  • Bottom Bracketincluded
  • PedalsVP; VPE-537
  • CassetteShimano M5100; 11-51 ATC; 11 speed | 11 Speed
  • GroupsetShimano Deore
  • Number Of Gears1 x 11
  • GearingShimano Deore

    • Motor & Battery

  • MotorSTePS EP8 | Shimano EP8; 85Nm
  • Torque85 Nm
  • BatteryShimano E8036; 630Wh (XS: 504Wh) | STePS E8036
  • Motor Positionmid-engine
  • Battery Capacity630 Wh
  • Motor ManufacturerShimano
  • Battery ManufacturerShimano
  • Maximum Motor Supportup to 25 kph

    • Wheels & Tires

  • SpokesBlack stainless
  • WheelsMERIDA COMP TR; 29 IWR; MAT aluminium
  • HubShimano MT400-B; 148x12 WHR; 36 SPH; Centerlock
  • TiresF: Kenda Regolith; 29x2.4"; wire, R: Kenda Regolith; 27.5x2.6"; wire
  • Wheel Size29" / 27.5"

    • Saddle

  • SaddleMERIDA Comp CC; V-mount
  • Seat PostMERIDA COMP TR; 30.9 DSP; 0 SSB; XS 100 SPT - S/M 125 SPT - L/XL 150 SPT

    • Suspension

  • ForkRock Shox 35 Gold RL; Air; 160 STR; Tapered; 51mm fork offset
  • Fork typesuspension fork
  • Front suspension160mm
  • Fork ManufacturerRockShox
    • Disclaimer

    Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
